For Reconstruction & Reinforcement of Anterior Cruciate Ligament

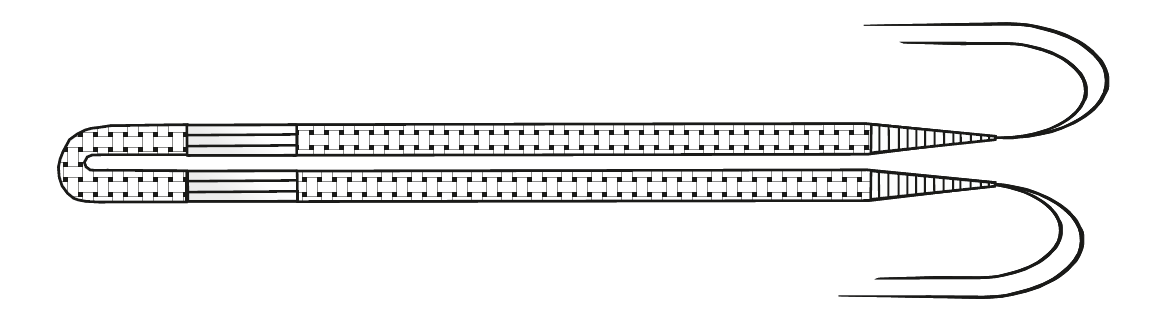

LARS® ACL - Double Bundle
LARS® ACL devices are indicated for patient suffering from acute or chronic injury of anterior cruciate ligaments. The ligaments consist of two distinct sections: free longitudinal intra-articular fibers to reduce wear and fatigue during torsion and intra-osseous section, providing resistance to wave loosening and elongation.
We offer a comprehensive range of ligaments size to accommodate varying patients’ anatomy. Each type of ligament contains a specific number and length of fibers, depending on indications.
- for both reconstruction & reinforcement with graft: AC 30 DB
- for reconstruction: AC 40 DB, AC 50 DB, AC 60 DB
The surgeon must select the appropriate LARS® ligament size based on the patient’s profile and preferences. We offer a range of fixations (screws and staples) and instruments compatible with these references’ sizes.
Innovative, Durable, and Designed for Peak Performance
LARS® ACL Surgical Techniques
LARS® for Reconstruction & Reinforcement of Anterior Cruciate Ligament
FEATURES & BENEFITS
Available in different sizes
covering different patient populations and varying anatomy used for hybrid technique in combination with autograft / allograft
Patented longitudinal free fibers
mimic the natural ligament and minimize fatigue during torsion
Available off-the-shelf instruments
with superior quality of targeting device for precision, with recognized surgical techniques focusing on the isometric position of the tunnel.
Compatible with LARS® titanium screws
designed for easy insertion, blunt ends without the risk of ligament cutting
supporting materials
PRODUCT INFORMATION
LARS® ligaments are implantable and non-absorbable medical devices. They are made of Polyethylene Terephthalate (PET) fabrics composed of adjacent technical threads, cross-linked by a mesh that holds the structure together.
LARS® cannulated ligament screws are made of Titanium Alloym corrding to ISO 5832-3 standard.
LARS® staples are made of Cobalt Chromium Alloy, according to ISO5832-4 standard.
Indications
For Reconstruction & Reinforcement with graft of Anterior Cruciate Ligament
Ligament
L020305 – AC 30 DB
L020405 – AC 40 DB
L020505 – AC 50 DB
L020606 – AC 60 DB
Fixation
SCREW:
FST110725 Ø 7 mm x 25 mm
FST110730 Ø 7 mm x 30 mm
FST110825 Ø 8 mm x 25 mm
FST110830 Ø 8 mm x 30 mm
FST110925 Ø 9 mm x 25 mm
FST110930 Ø 9 mm x 30 mm
STAPLES:
GST200820 – 8 mm x 20 mm
GST201020 – 10 mm x 20 mm
Instruments
U01009 – K-wire Ø 3 x 330 mm (2 trocar ends)
U01020 – K-wire Ø 2,5 x 330 mm, 2 trocar ends
U01018 – K-wire Ø 2 x 330 mm (2 blunt ends)
U01152 – Cannulated drill bit Ø 6 x 250 mm int. Ø 2.7 mm
U01153 – Cannulated drill Ø 7 x 250 mm
U01157 – Cannulated drill Ø 8 x 250 mm
U01460 – Needle with eyes
ATVS35 – Screwdriver
ACPL02 – Ligament cutter
AIAG01 – Staple holder
AEAG01 – Staple extractor
