For Reconstruction of Medial Collateral Ligament
LARS® MCL

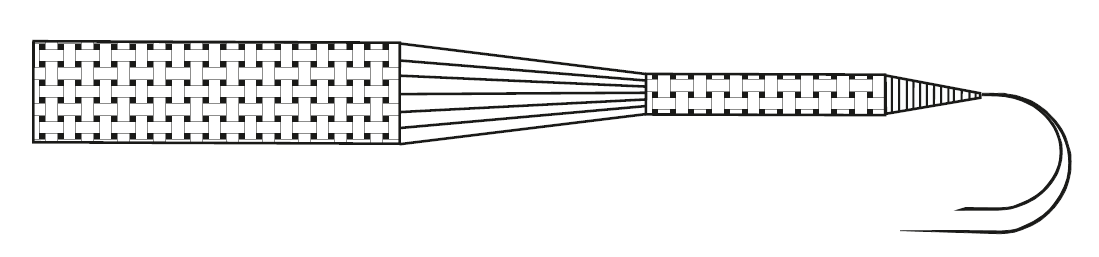

Indicated for the reconstruction of Medial Collateral Ligament. MCL 32 ligament comprises of distinct zones:
- Cylindrical: an intra-osseous section, wrap knitting, to pass into the femoral tunnel, providing resistance to wave loosening & elongation
- Free fibers corresponding to the MCL itself, a longitudinal extra-articular section, to reduce wear & fatigue
- Flat extra-osseous section, to pass into for the tibial insertion, providing a strong anchorage resistance of the ligament on bone cortex
- Traction threads made of PEHM to help the passage of the ligament into the bone tunnels. They are removed at the end of the surgery.
We offer a range of fixations (screws and staples) and instruments compatible with this reference’s size.
LARS® For Reconstruction of Medial Collateral Ligament
FEATURES & BENEFITS
Designed to resist traction
with different strength
Patented longitudinal free fibers
to mimic the natural ligament and minimize fatigue during torsion
Available off-the-shelf instruments
with recognized surgical techniques
Compatible with LARS® titanium screws
designed for easy insertion, blunt ends without the risk of ligament cutting
Compatible with LARS® staples
sharp extremities are deisnged to ease staple insertion into the bone, while sharp edges under the staple bridge is to ease the fixation of ligament
supporting materials
PRODUCT INFORMATION
LARS® ligaments are implantable and non-absorbable medical devices. They are made of Polyethylene Terephthalate (PET) fabrics composed of adjacent technical threads, cross-linked by a mesh that holds the structure together.
LARS® cannulated ligament screws are made of Titanium Alloym corrding to ISO 5832-3 standard.
LARS® staples are made of Cobalt Chromium Alloy, according to ISO5832-4 standard.
Indications
For Reconstruction of Medial Collateral Ligament
Ligaments
L060305 – MCL 32

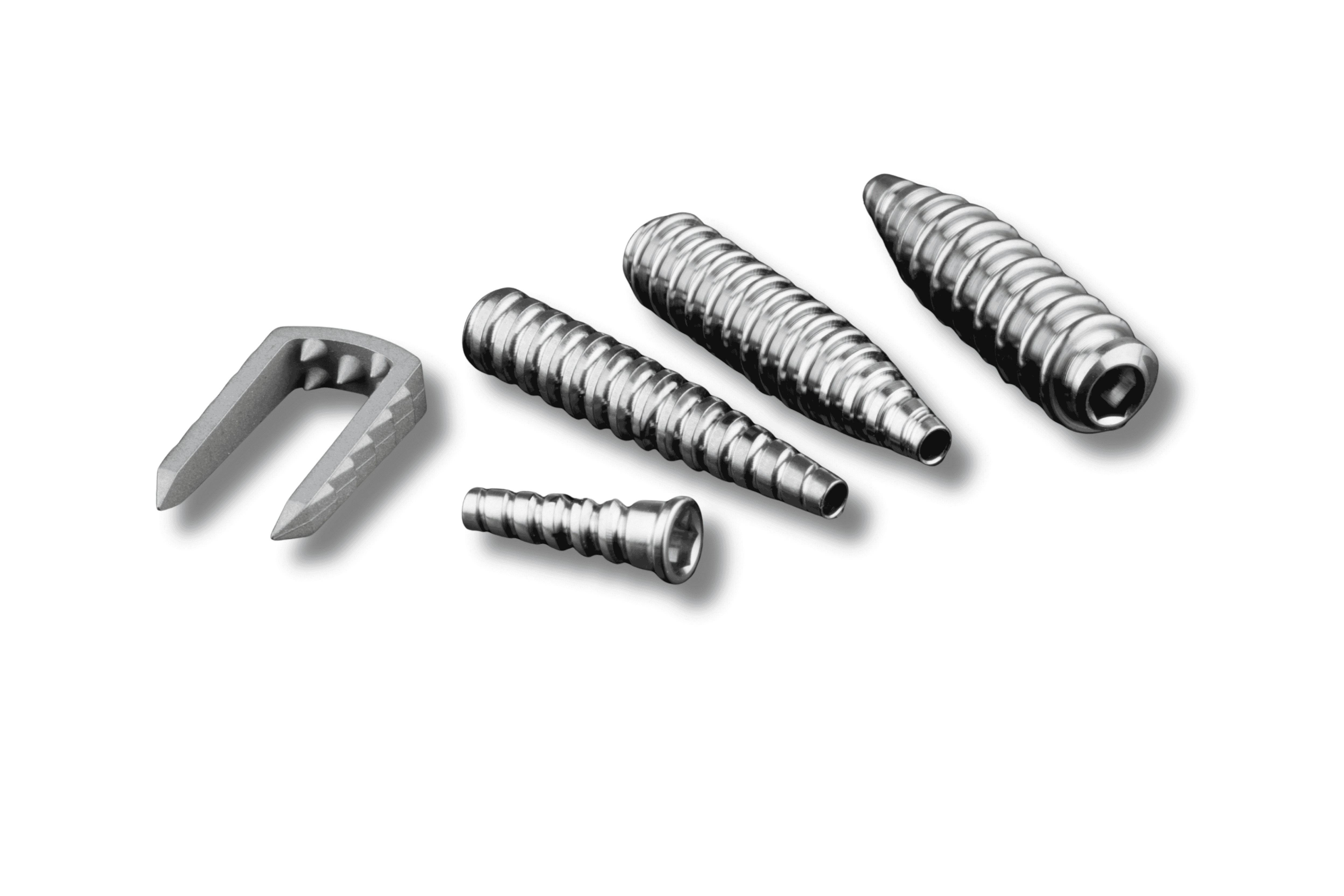

Fixations
SCREW:
FST110630 – Ø 6 mm x 30 mm
FST110625 – Ø 6 mm x 25 mm
STAPLES:
GST200820 – 8 mm x 20 mm
GST201020 – 10 mm x 20 mm
Instruments
U01166 – Cannulated bit Ø 5 x 250 mm
ATVS35 – LARS™ screwdriver
U01018 K-wire Ø 2 x 330 mm 2 blunt ends
U01003 – K-wire Ø 2 x 250 mm 2 trocar ends
AIAG01 – Staple holder
AEAG01 – Staple extractor
U01001 – K-wire Ø 2 x 100 mm 1 trocar end
U01254 – Telescopic tube Ø 4,8 x 3,7 mm – L 300 mm
U014011 – Wire-loop, 1 unit
U02456 – Ligament traction handle
